ERwin How to Set Owner (Schema Prefix in Oracle Database)

Three options to get schema prefix in DDL SQL scripts generated in ERwin.

1. Global Setting

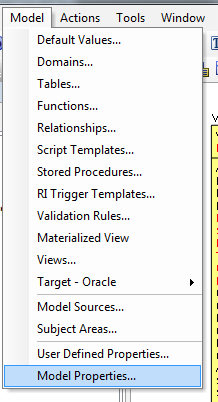

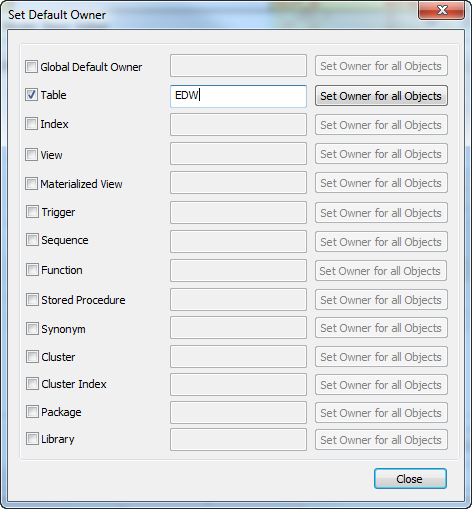

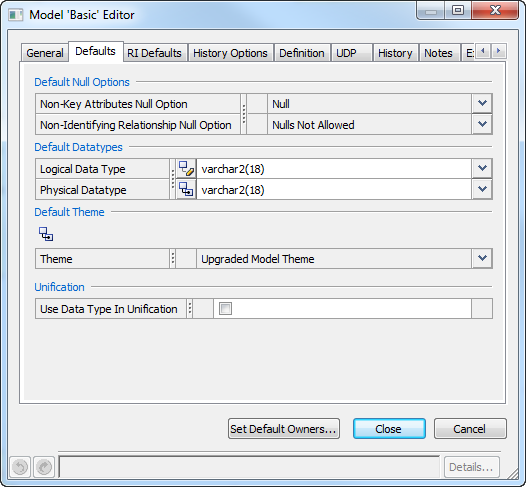

Erwin main menu Model -> Model Properties -> Set Default Owners…

2. Local Override in the Model

Open Physical view in the model

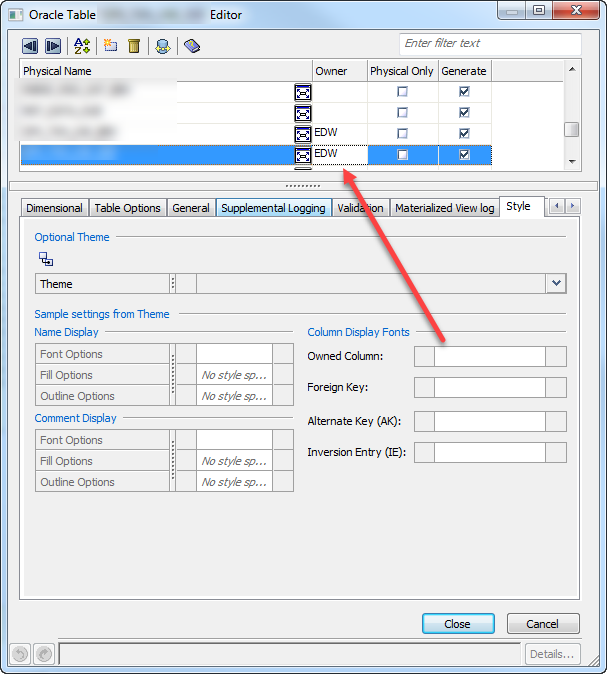

Right click on the table “Table Properties…” to open Oracle Table Editor. There is a column “Owner”. Press F2 and type in the name.

3. Local override in Forward Engineering Screen

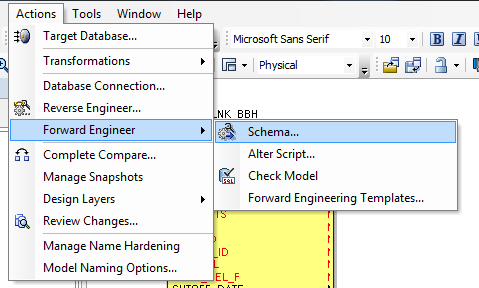

In physical view open Forward Engineering dialog box.

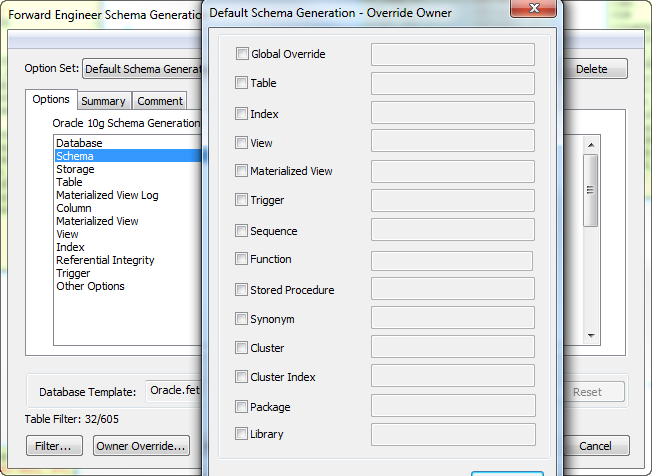

At the bottom there is “Owner Override…” button.

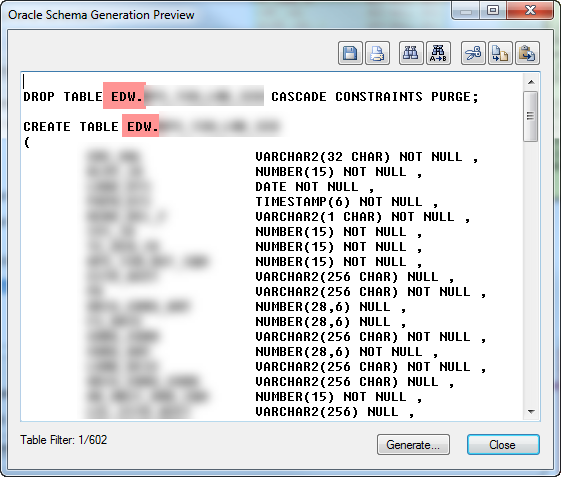

DDL Generated Script
